Python 数据结构笔记

1. STACK

1.1 栈的定义

栈: 官方定义 , 一种特殊的串行数据结构, 只允许在一端进行加入数据与取出数据操作.

1.2 栈的例子

两个例子:

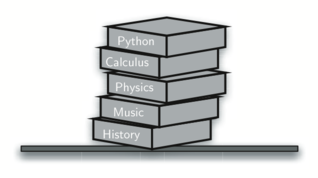

• 桌面上的一摞书

• 浏览器后退按钮

浏览器有个后退按钮, 每次点击, 跳转到最靠近当前页的 URL. (实际上, 进行的是 URLS 出栈操作).

1.3 栈的实现

栈遵循的是规则被称为 LIFO, last-in first-out , 具体的操作比较简单, 使用 Python List 强大的功能实现如下:

class Stack:

    def __init__(self):

        self.items = []



    def push(self, item):

        self.items.append(item)



    def pop(self):

        self.items.pop()



    def get_peek(self):

        return self.items[-1]



    def get_size(self):

        return len(self.items)



    def is_empty(self):

        return 0 == self.get_size()



    def display(self):

        print(self.items)

1.4 栈的应用

1.4.1 校验四则运算表达式

计算机进行四则运算, 会先验证式子的格式正不正确, 下面对括弧判断一下:

{[()]}() --> True

[](} --> False

处理思路非常清晰, 存入左括号, 如果新增的右括号刚好凑对, 就消掉, 和玩 连连看 一个原理.

def is_right_bracelet_format(s):

    stack = Stack()



    for element in s:

        if element in '{[(':

            stack.push(element)

        else:

            if stack.is_empty() or not bracelet_type_match(stack.get_peek(), element):

                return False

            stack.pop()

    return stack.is_empty()



def bracelet_type_match(left_type, right_type):

    left_type_list = ['(', '[', '{']

    right_type_list = [')', ']', '}']

    return left_type_list.index(left_type) == right_type_list.index(right_type)

1.4.2 进制转换

2. Queue

类比与栈, 队列遵循的是规则被称为 FIFO, first-in first-out . 有个通俗的说法描述如下, 啊哈哈哈.

吃了吐是栈, 吃了拉是队列

2.1 队列的实现

队列分为分为普通队列和双端队列, 普通队列包括 队尾入队 和 队头出队 , 双端队列两头都能进行 入队/出队 .

普通队列实现, 按照从左到右的顺序, 左边是队尾.

class Queue:

    def __init__(self):

        self.items = []



    def enqueue(self, item):

        self.items.insert(0, item)



    def dequeue(self):

        self.items.pop()



    def get_size(self):

        return len(self.items)



    def is_empty(self):

        return self.get_size() == 0



    def display(self):

        print(self.items)

双端队列, 多了个方法:

class Deque:

    '''

        队列从左到右, 右边是队头

    '''



    def __init__(self):

        self.items = []



    def add_rear(self, item):

        self.items.insert(0, item)



    def remove_rear(self):

        self.items.pop(0)



    def add_front(self, item):

        self.items.append(item)



    def remove_front(self):

        self.items.pop()



    def get_size(self):

        return len(self.items)



    def is_empty(self):

        return self.get_size() == 0



    def display(self):

        print(self.items)

3. TREE

二叉树: Binary tree, 是每个节点最多只有两个分支的树结构.

3.1 二叉树实现

class BinaryTree:

    def __init__(self, root_object):

        self.key = root_object

        self.left_child = None

        self.right_child = None



    def insert_left(self, node):

        if self.left_child is None:

            self.left_child = BinaryTree(node)

        else:

            tmp_node = BinaryTree(node)

            tmp_node.left_child = self.left_child

            self.left_child = tmp_node



    def insert_right(self, node):

        tmp_node = BinaryTree(node)

        if self.right_child is None:

            self.right_child = tmp_node

        else:

            tmp_node.right_child = self.right_child

            self.right_child = tmp_node



    def get_left_child(self):

        return self.left_child



    def get_right_child(self):

        return self.right_child



    def get_root(self):

        return self.key

二叉树的遍历

ft_child():

        pre_order_display(tree.get_left_child())



    if tree.get_right_child():

        pre_order_display(tree.get_right_child())



# 中序遍历def in_order_display(tree):

    if not isinstance(tree, BinaryTree):

        return False



    if tree.get_left_child():

        in_order_display(tree.get_left_child())



    print(tree.key)



    if tree.get_right_child():

        in_order_display(tree.get_right_child())



# 后序遍历def post_order_display(tree):

    if not isinstance(tree, BinaryTree):

        return False



    if tree.get_left_child():

        post_order_display(tree.get_left_child())



    if tree.get_right_child():

        post_order_display(tree.get_right_child())



    print(tree.key)

# 翻转

def invert_binary_tree(tree):

    tree.left_child, tree.right_child = tree.right_child, tree.left_child

    if tree.get_left_child() != None:

        invert_binary_tree(tree.get_left_child())

    if tree.get_right_child() != None:

        invert_binary_tree(tree.get_right_child())
